The second TMS cone (desginated T2) has been instrumented with four,
three-element rectangular rosette strain gages over a sector of the cone.
T2 cone instrumented with strain gages.
T2 coneThe second TMS cone (desginated T2) has been instrumented with four,
three-element rectangular rosette strain gages over a sector of the cone.
T2 cone instrumented with strain gages.
The following is a video that was made during and after the test. T2-Video

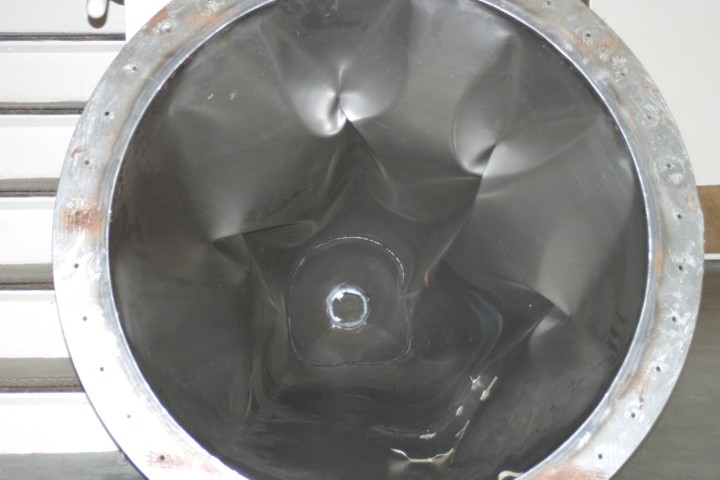

Below are pictures of the cone after the test. The picture immediately below is in the same orientation
as the picture of the unbuckled cone immediately above.
